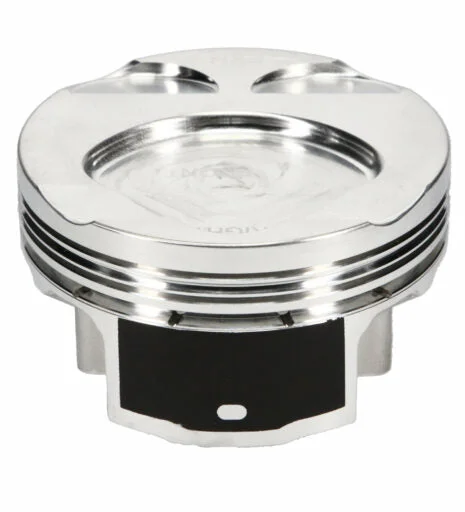

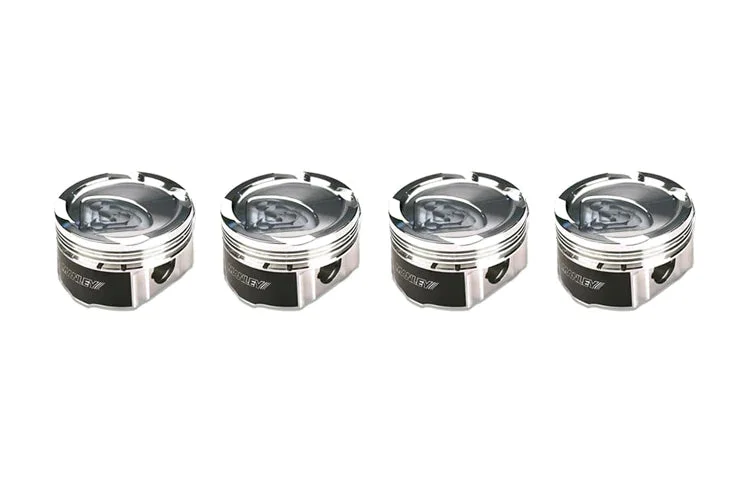

Manley 2013+ Subaru BRZ / Toyota 86 / Scion FR-S (FA20) 86.25mm Bore 11.4cc Dish Platinum Series Piston Set w/ Rings

Description

Part #: man632602C-4

This set of Manley Pistons for the FA20 Subaru BRZ and 4U-GSE Scion FR-S and Toyota GT 86  includes a full set of 4 pistons, wrist pins, ring sets and round wire locks. Please review all information carefully.

Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier second ring
• Round wire locks included
• Recommended piston clearance: .003″ for mildly boosted and .0035″ for highly boosted measured .850″ from the bottom of the oil ring

Specifications

• Bore Size: 86.25mm
• Over Size: +0.25mm
• Rod Length: 5.090″
• Stroke: 86mm
• Comp Distance: 1.285″
• Dome Volume: -11.4cc
• Comp Ratio: 10.0:1
• Piston Type: Dish

Vehicle Fitment:
Subaru BRZ (FA20)
Scion FR-S (4U-GSE)
Toyota GT 86 (4U-GSE)
