Description

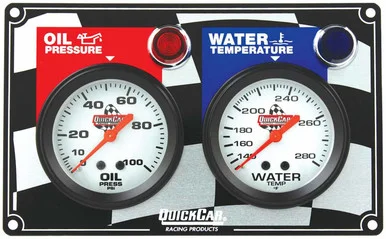

Real-time engine monitoring is non-negotiable in high-performance racing and serious engine builds. This QuickCar gauge panel gives you direct visual feedback on two critical parameters—oil pressure and water temperature—with mechanical accuracy and built-in warning lights that alert you to dangerous conditions before catastrophic failure occurs. The complete kit eliminates guesswork during tuning, testing, and competition.
The compact 7-1/4″ x 4-1/2″ footprint fits tight engine bays and custom dash installations, while the checkered flag design integrates cleanly into race car aesthetics. LED backlighting ensures readability in low-light conditions, and the included sending units, wiring, and adapters make this a true bolt-and-go solution for most high-performance applications.
- Oil pressure gauge: 0-100 PSI
- Water temperature gauge: 100-280°F
- Panel dimensions: 7-1/4″ x 4-1/2″
- Water temperature adapter: 1/2″-NPT
- Oil pressure fitting: 1/8″-NPT
- Warning light: 20 PSI oil pressure
- Warning light: 235°F water temperature
- LED backlit mechanical gauges
- Includes all sending units
- Complete wiring harness included
- Checkered flag panel design
- MPN: 61-6001
